PB600UK

Smaller, quieter, lighter

· The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

· Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

InquiryPB600UK DownloadPB600UK

Product Details

PB600 UK

Smaller Smaller

Quieter Quieter

Lighter Lighter

PRODUCT PARAMETERS

Lighter

PB600UK

Lighter

607.36Wh(14.6V/41.6Ah)

Lighter

303mm x190mm x138mm

Lighter

7.1kg

Lighter

-20°C~40°C

Lighter

0°C~40°C

Input

Lighter

18-24V,120W Max

Lighter

18- 24V,120W Max

Lighter

5V-2.4A,9V/12V/15V/20V-3A,20V- 5A,100W Max

Lighter

12.6V- 10A,126W Max

Output

Lighter

230V~50/60Hz,Rated 600W,Peak1000W

Lighter

12V- 6A,each port 72W Max,total 120W

Lighter

5V- 2.4A,9V/12V/15V/20V-3A, 20V- 5A,100W Max

Lighter

5V-2.4A,12W Max

Lighter

12V- 10A,120W Max

PRODUCT ADVANTAGES

Lighter

Easy to carry

The size and weight of our portable power station is only about 65% of same wattage power station on the market. which is much easy to carry.
Lighter

Better heat dissipation

Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.
Lighter

Bright LED Lamp

Golden Future Portable power station has a 10W LED lamp with four brightness levels and an emergency signal mode. One time fully charged can power the built-in lamp for up to a week.

10W 10W

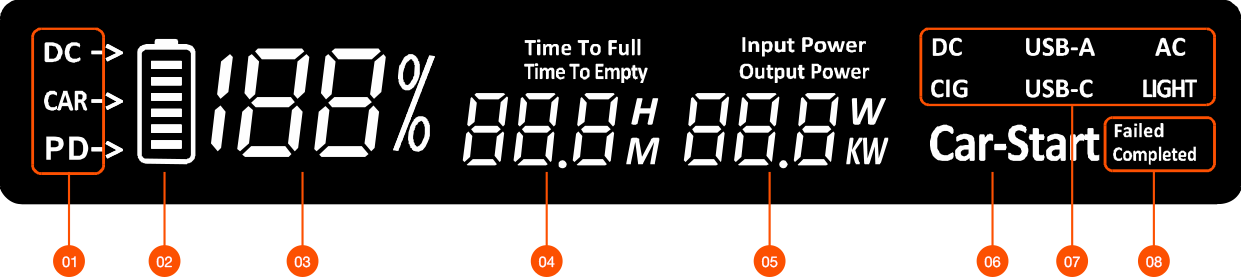

PANEL ICONS

10W
  • 1

    Charging instructions

    DC for charging with adapter or PV, CAR for car charger portcharging, PD for USB-C charging.

  • 2

    Power icon

    Battery level according to 6 cells, charging runner indicatescharge level

  • 3

    Power indicator

    Displays the charge level of the battery as a percentage

  • 4

    Time Remaining Indicator

    indicates the estimated time to completely charge the battery Time To Ful) or completely drain it (Time To Empty), in eitherhours(H) or minutes(M)

  • 5

    Total power indication & display switching AC frequency

    "input ower"indicates charging power and "Output Power"indicates discharging power. The lower number W or KW indicatesthe current power value, if you want to switch the AC frequency,hit the AC button 3 times in succession, the screen will display"F50" representing“50Hz","F60"representing"60Hz"

  • 6

    Car Recharge Mode

    "Car-Start'which indicates that the car battery is beingcharged, is suitable for topping up the car battery and foremergency starting of the car.

  • 7

    Interface status indication

    DC,CIG, USB-A, USB-C, AC, LIGHT are displayed to indicate thatthe corresponding function is switched on.

  • 8

    Car start status indication

    The three display combinations Car-Start /Car-Start Failed/Car-Start Completed on the far right side indicate that carstart charging is in progress, start charging has failed, andstart charging is complete.

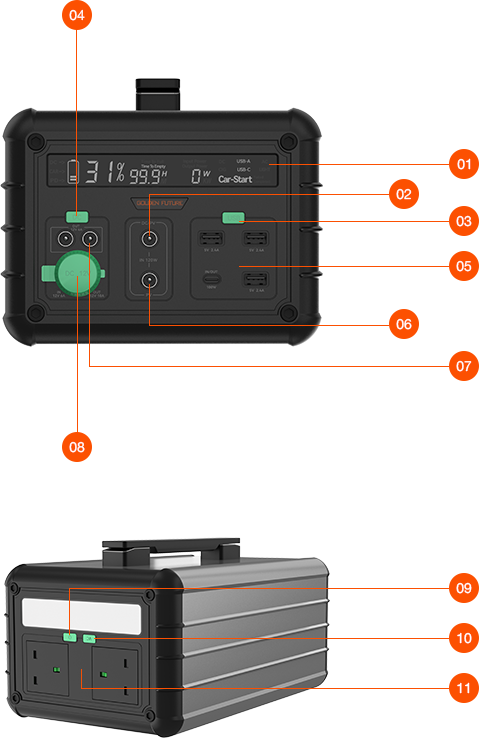

10W
  • 1

    LED Display

  • 2

    10W DC Input

  • 3

    USB Button

  • 4

    DC Button

  • 5

    10W 3*USB-A 1*USB-C

  • 6

    10W PV Input

  • 7

    10W 2*DC 5521

  • 8

    10W Car Socket

  • 9

    AC Button

  • 10

    LED Button

  • 11

    10W 2*AC
