PB600EU

Smaller, quieter, lighter

· The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

· Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

Inquiry Download

Product Details

PB600 EU

Smaller

Quieter

Lighter

PRODUCT PARAMETERS

PB600EU

607.36Wh(14.6V41.6Ah)

303mmx190mmx138mm

7.1kg

-20°C~40°C

0°C~40°C

Input

18-24V, 120W Max

18-24V, 120W Max

5V-2.4A,9V/12V/15V/20V-3A, 20V- 5A,100W Max

12.6V- 10A,126W Max

Output

230V~50/60Hz, Rated 600W, Peak1000W

12V- 6A, each port 72W Max, total 120W

5V- 2.4A, 9V/12V/15V/20V- 3A, 20V- 3A,100W Max

5V-2.4A,12W Max

12V- 10A，120W Max

PRODUCT ADVANTAGES

Easy to carry

The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

Better heat dissipation

Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

Bright LED Lamp

Golden Future Portable power station has a 10W LED lamp with four brightness levels and an emergency signal mode. One time fully charged can power the built-in lamp for up to a week.

10W

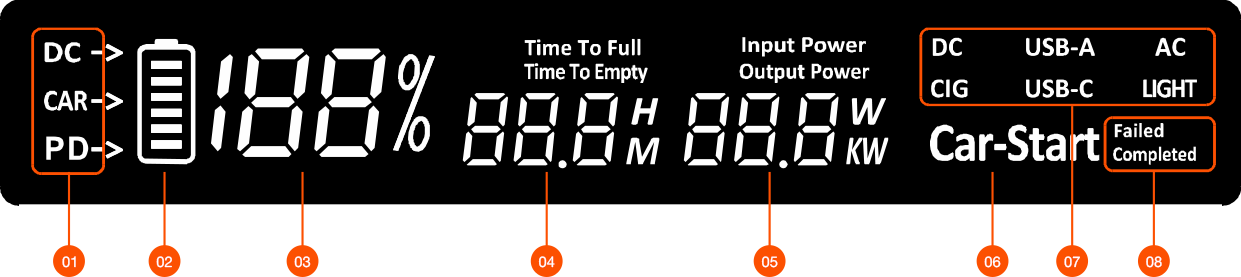

PANEL ICONS

  • 1

    Charging instructions

    DC for charging with adapter or PV, CAR for car charger portcharging, PD for USB-C charging.

  • 2

    Powericon

    Battery level according to 6 cells, charging runner indicatescharge level

  • 3

    Power indicator

    Displays the charge level of the battery as a percentage.

  • 4

    Time Remaining Indicator

    Indicates the estimated time to completely charge the battery(Time To Ful) or completely drain it (Time To Empty), in eitherhours (H) or minutes (M).

  • 5

    Total power indication & display switching AC frequency

    "input Power"indicates charging power and "Output Power"indicates discharging power. The lower number W or kW indicatesthe current power value, if you want to switch the AC frequency.hit the AC button 3 times in succession, the screen wil display"F50"rep resenting“50Hz."60"representing“60Hz"

  • 6

    Car Recharge Mode

    "Car-Start, which indicates that the car battery is beingcharged, is suitable for topping up the car battery and foremergency starting of the car.

  • 7

    Interface status indication

    DC, CIG,USB-A, USB-C, AC, LIGHT are displayed to indicate thatthe corresponding function is switched on.

  • 8

    Car start status indication

    The three display combinations Car-Start /Car-Start Failed/Car-Start Completed on the far right side indicate that carstart charging is in progress, start charging has failed, andstart charging is complete

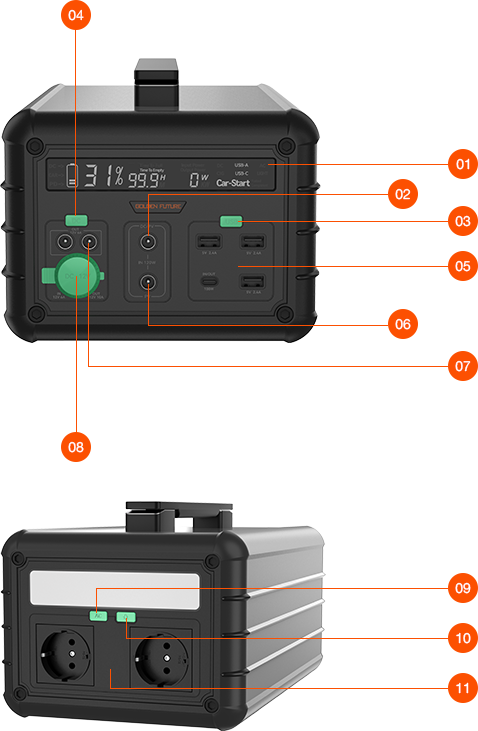

  • 1

    LED Display

  • 2

    DC Input

  • 3

    USB Button

  • 4

    DC Button

  • 5

    3*USB-A 1*USB-C

  • 6

    PV Input

  • 7

    2*DC 5521

  • 8

    Car Socket

  • 9

    AC Button

  • 10

    LED Button

  • 11

    2*AC
