PB1000US

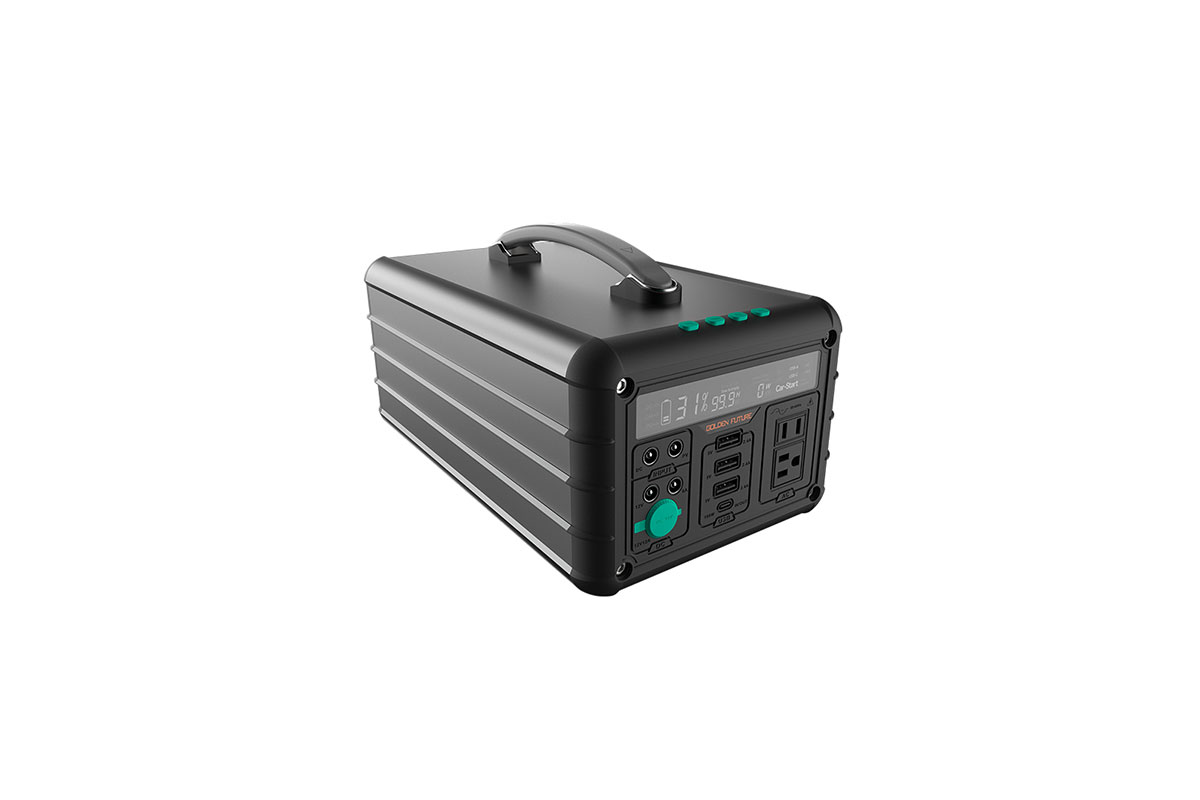

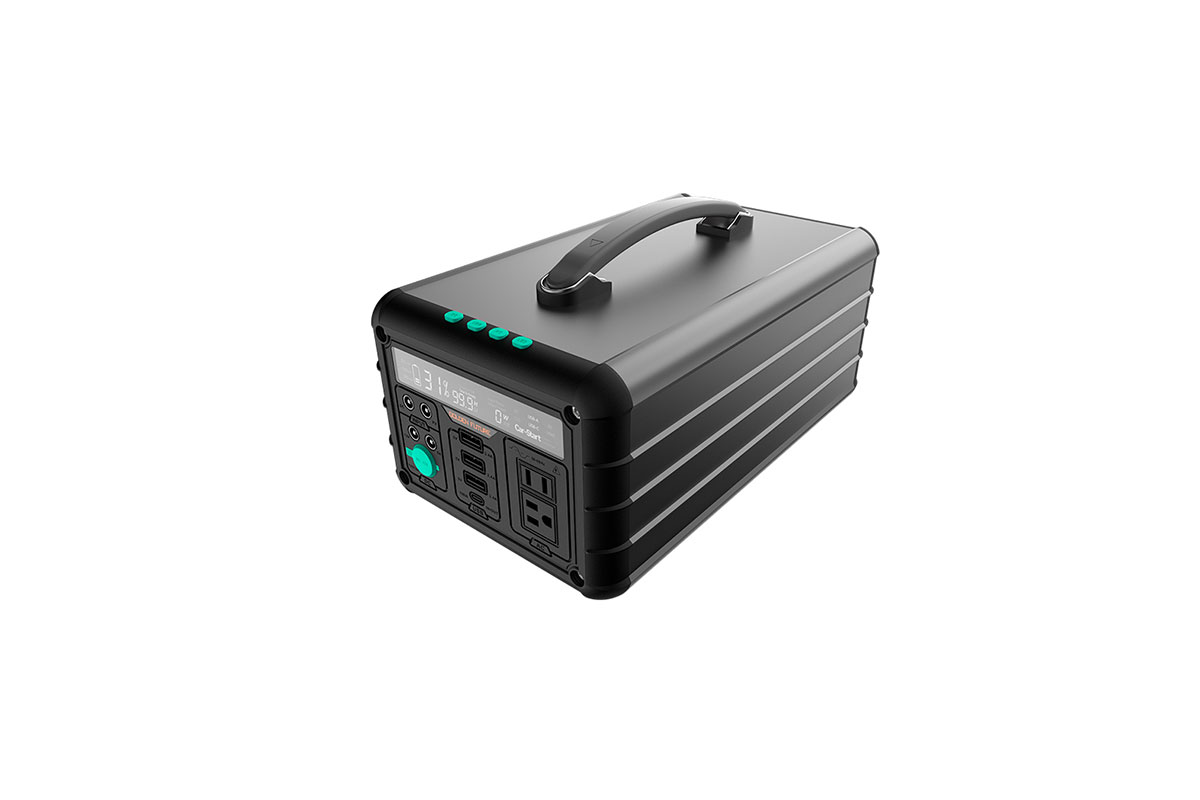

High Performance Large Capacity 1000W Portable Power Station Emergency Power Supply

· Use aluminum alloy shell with good heat dissipation

· 4 Charging ways. (Solar panel, DC, Car socket and PD )

· 5 Output ways. ( DC / AC/ USB / PD and Car socket )

· Over 2000 cycles automotive-grade LiFePo4 battery

· Support AC outlet and PD 60W simultaneously charging

Inquiry

Download

Product Details

Smaller Quieter Lighter

PRODUCT PARAMETERS

Model No PB1000US
Capacity 1016Wh(69.6Ah/14.6V)
Discharge Temperature -4-104°F(-20-40℃)
Recharging Temperature 32-104°F(0-40℃)

Input

DC 521 Input 20V-6A120WMax
Solar Input 18- 24V,120W Max
USB-C Input 20V-.3A, 20V/5V/, 100W Max
Car Socket Input 12V-8A(Rated)12.6V-8A,100.8W Max (12V-12A Peak, it only for short time charging state)

Output

AC Output 110V~50/60Hz 1000W(Peak1500W)
USB-C Output 15V-2.4A,9V/12V 15V/20V-3A,20V-5A,100WMax
USB-A Output 5V-2.4A,120W Max
Car Socket Output 12.6V-210A,126W Max
DC 5521 Output 12V- 6A

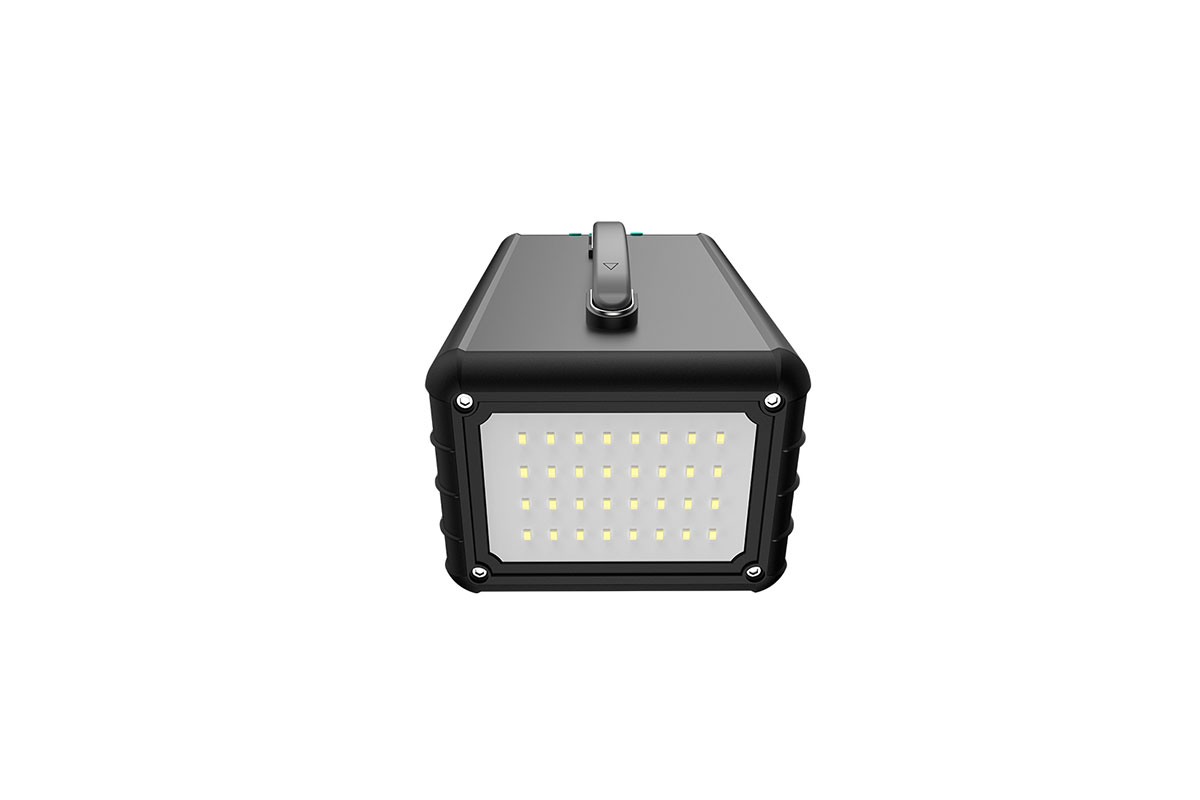

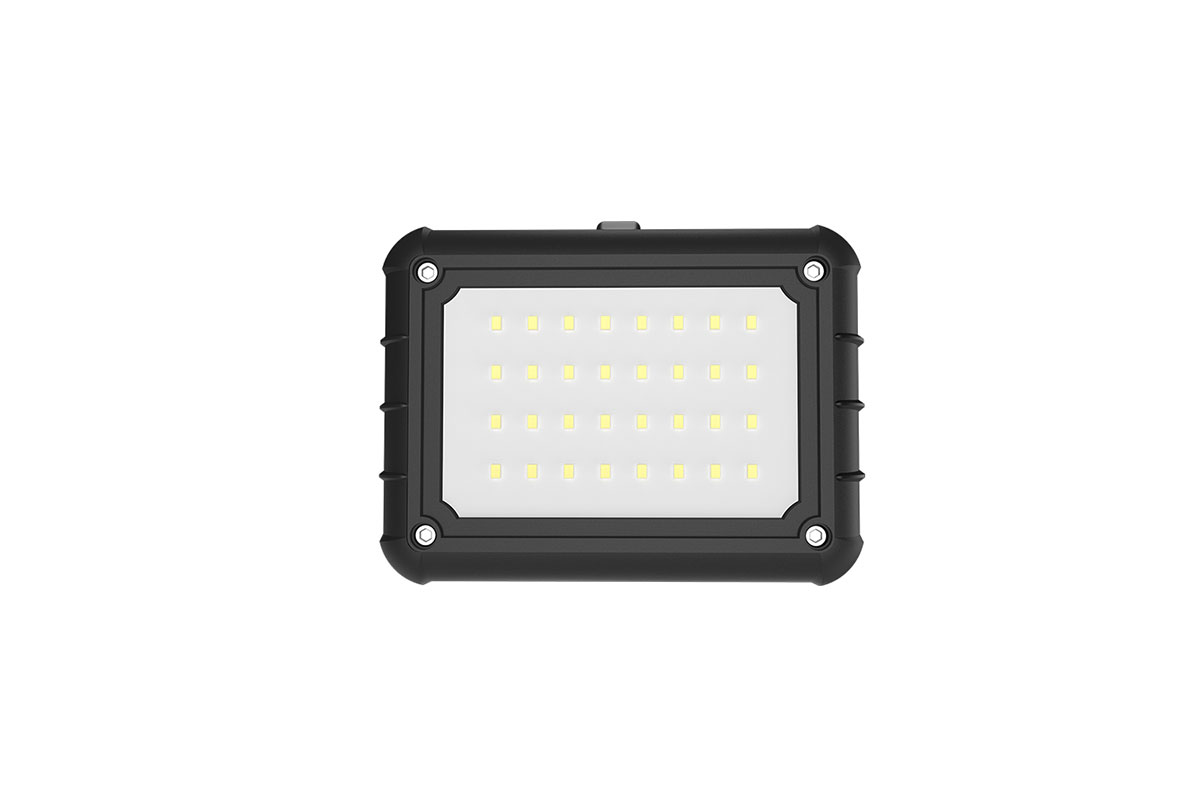

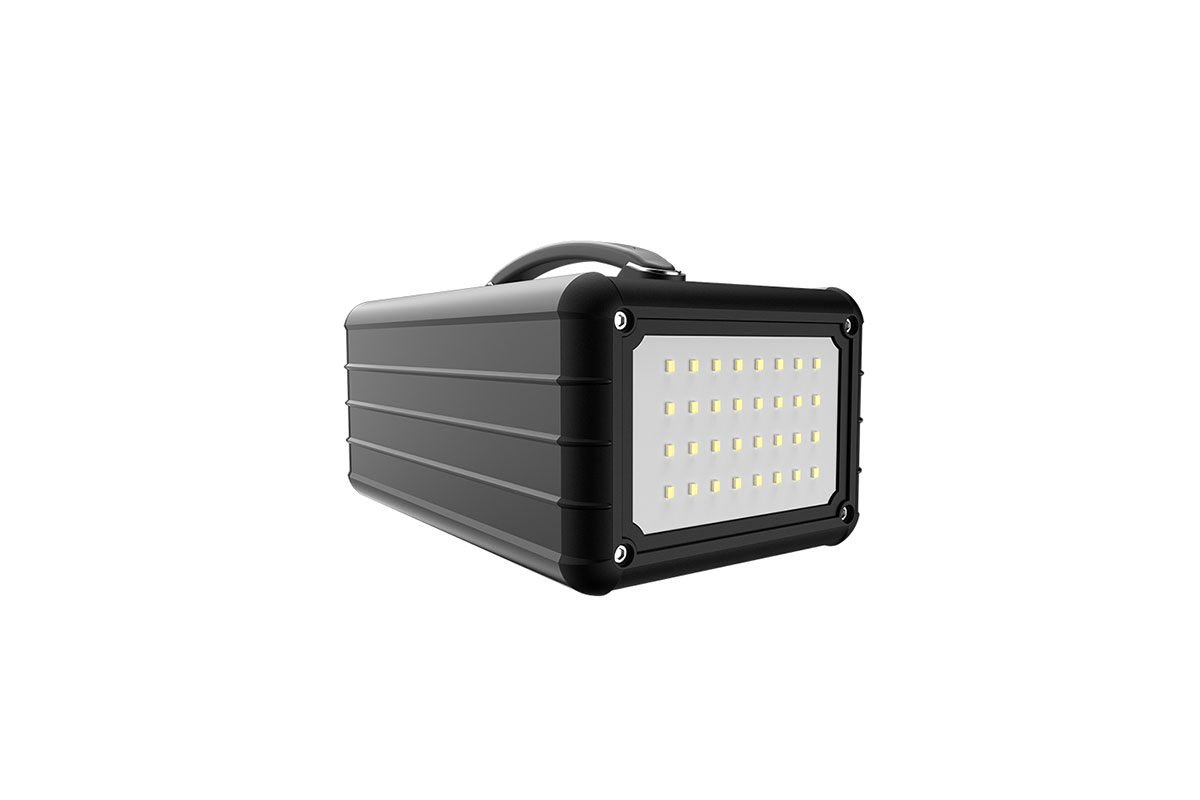

LED Power 5W/10W/SOS/Flash

PRODUCT ADVANTAGES

: Easy to carry

The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

: Better heat dissipation

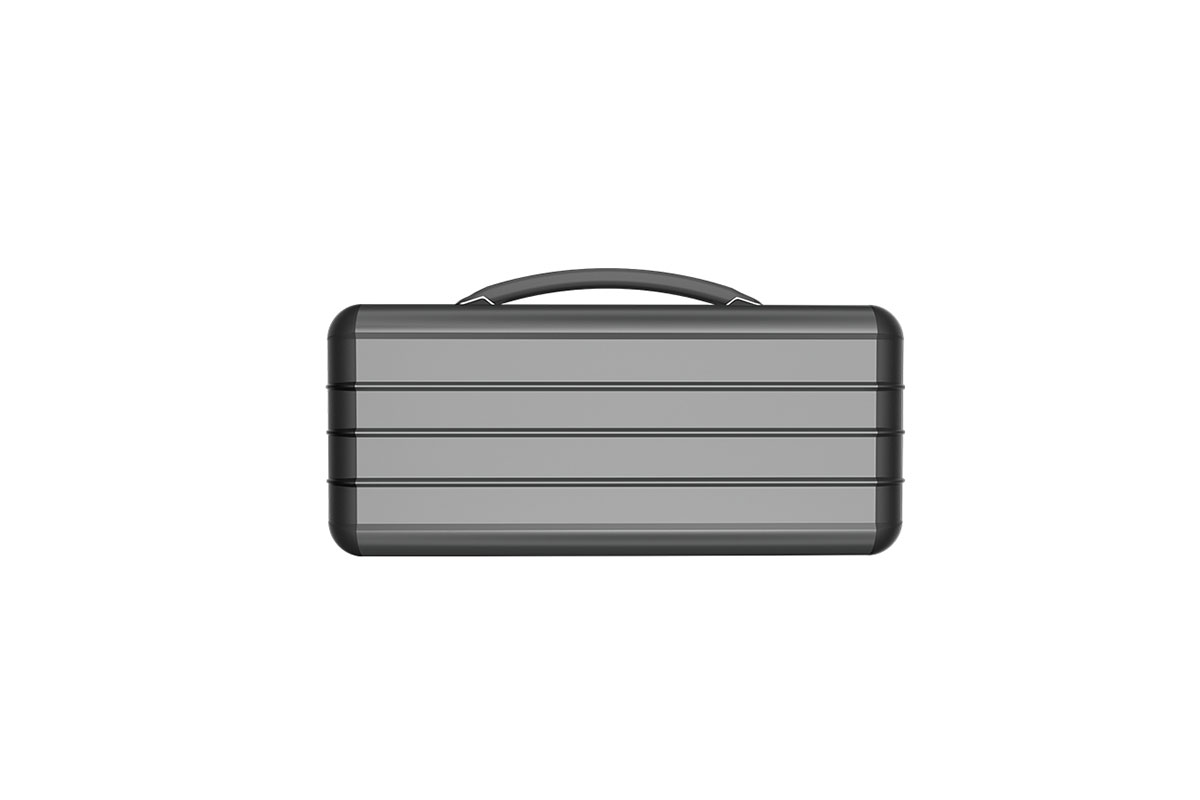

Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

10W

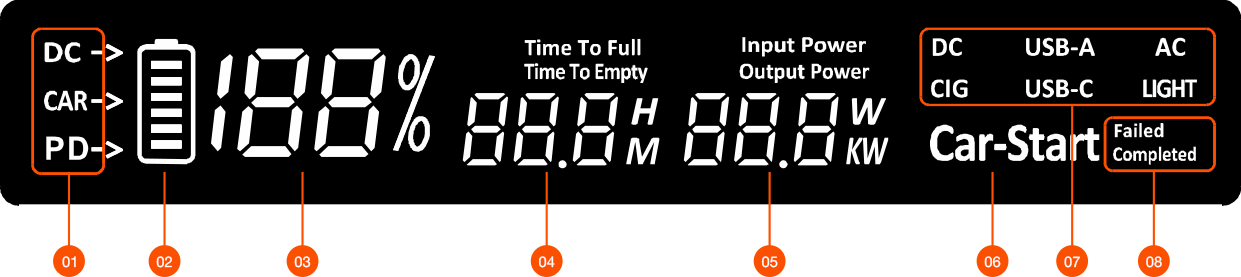

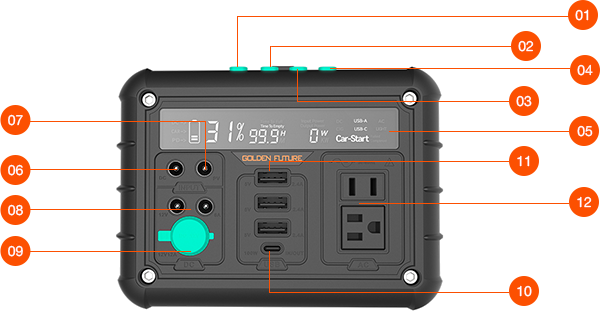

PANEL ICONS

1: Charging instructions

DC indicates charging with an adapter or a solar panel, CAR indicatescharging with a car charging port, PD indicates charging with Type-C

2: Power icon

Indicates the charge level of the battery.

3: Power indicator

State of charge (SOC) percentage.

4: Time Remaining Indicator

Indicates the estimated time to completely charge the battery (Time ToFul) or completely drain it (Time To Empty)

5: Total power indication & display switching AC frequency

Indicates the input or utput power

6: Car Recharge Mode

Car-Start indicates that the car battery is being charged. Car-StartFailed indicates that battery charging has failed. Car-Start Com pletedindicates that battery charging is completed.

7: Interface status indication

Displays DC,CIG.USB-A. USB-C.A,LIGHT to indicate that thecorresponding outout ports are active and ready to use.

8: Car start status indication

Displays“Failed”or“Completed"to indicate whether the rechargingprocess was successful.
