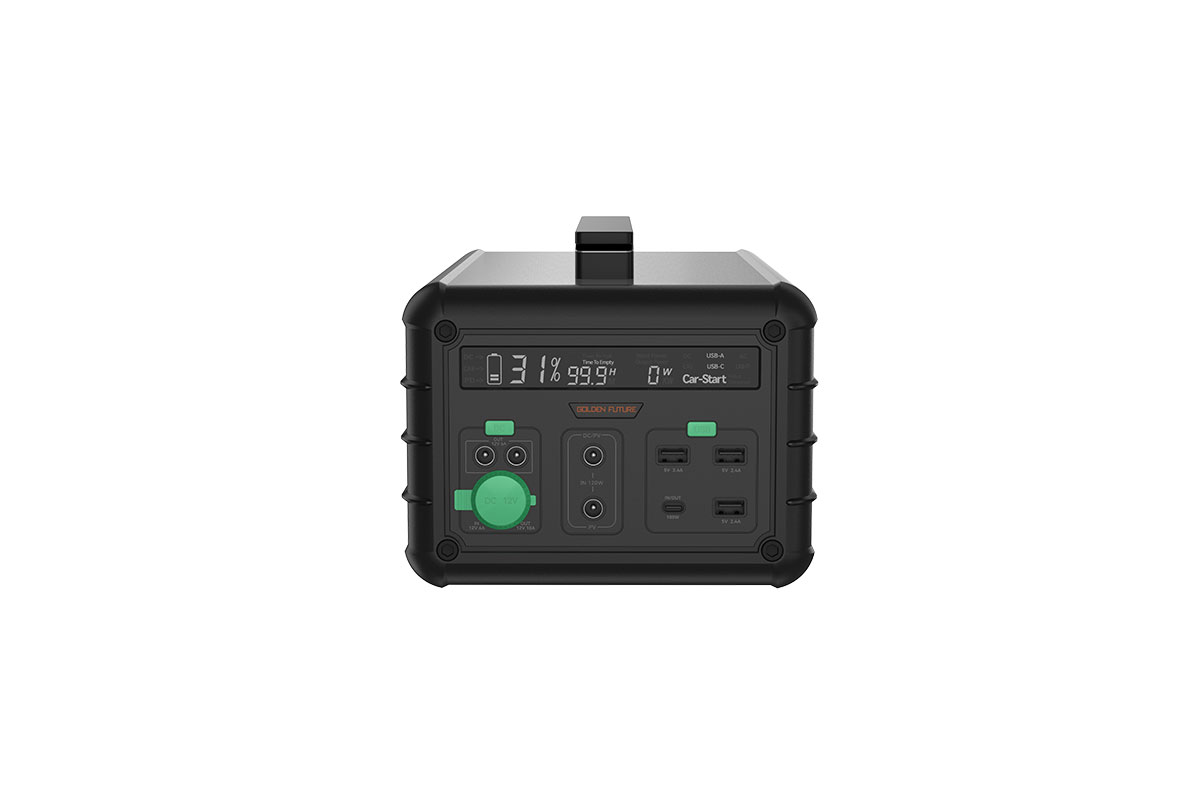

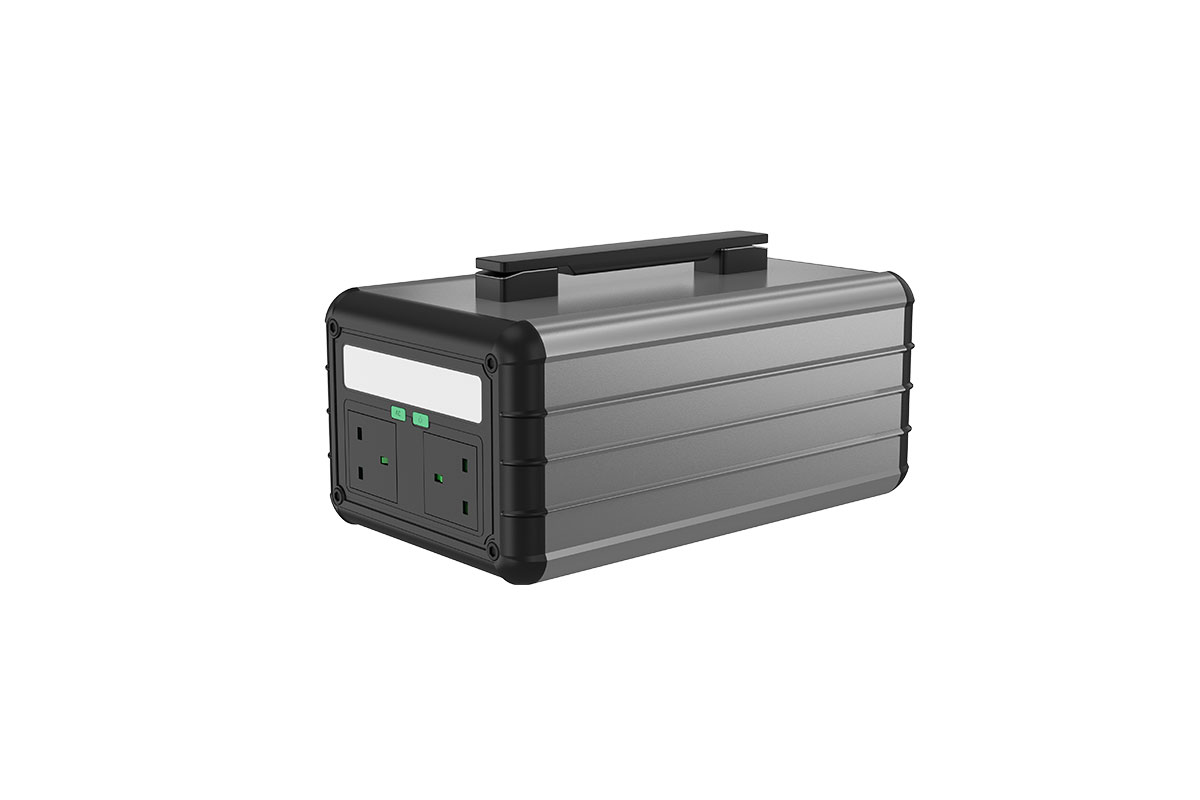

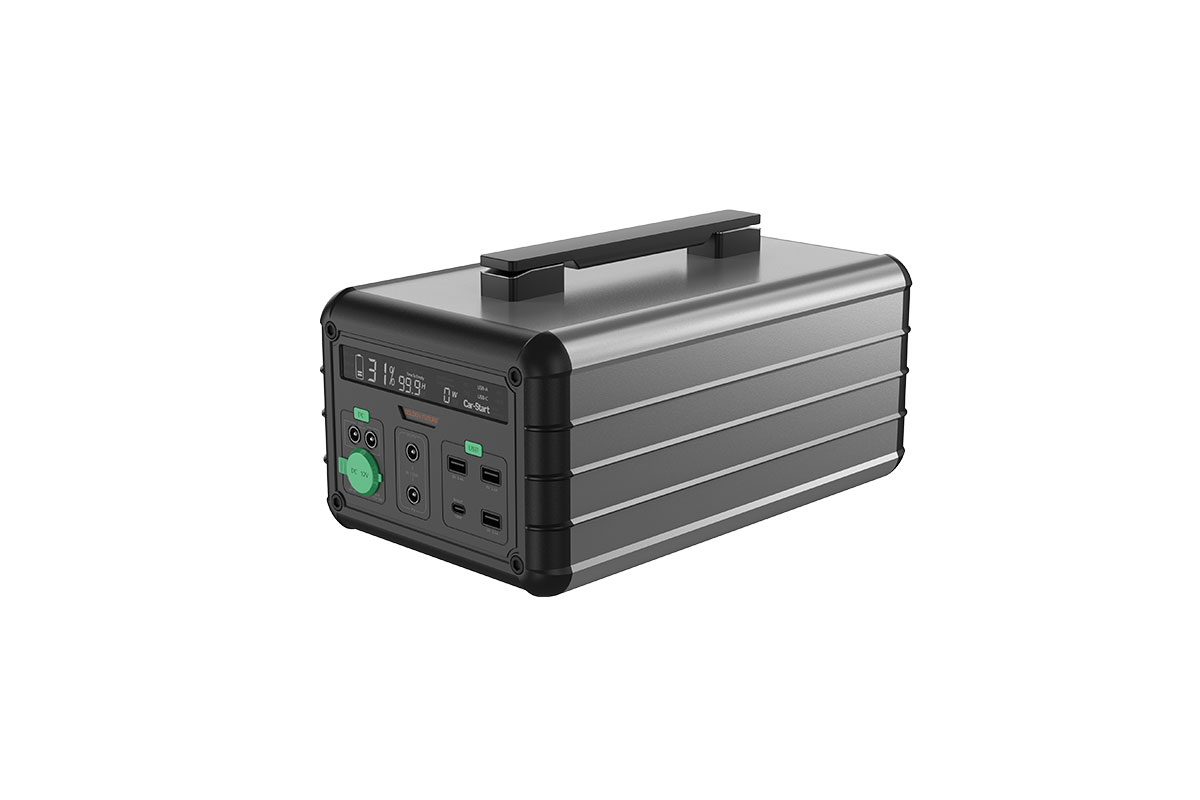

PB1000UK

Smaller, quieter, lighter

· The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

· Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

Inquiry Download

Product Details

PB1000UK

Smaller

Quieter

Lighter

PRODUCT PARAMETERS

PB1000UK

1016.16Wh(14.6V/69 .6Ah)

359mm x190mm x138mm

8.55kg

-20°C~40°C

0°C~40°C

Input

18-24V,120W Max

18- 24V,120W Max

5V-.4A,9V/12V/15V/20V-3A,20V-5A.100W Max

12.6V一10A,126W Max

Output

230V~50/60Hz,Rated 1000W,Peak1500W

12V:- 6A,each port 72W Max,total 120W

5V=.4A,9V/12V/15V/20V =-3A 20V = 5A,100W Max

5V-2.4A,12W Max

12V- 10A，120W Max

PRODUCT ADVANTAGES

Easy to carry

The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

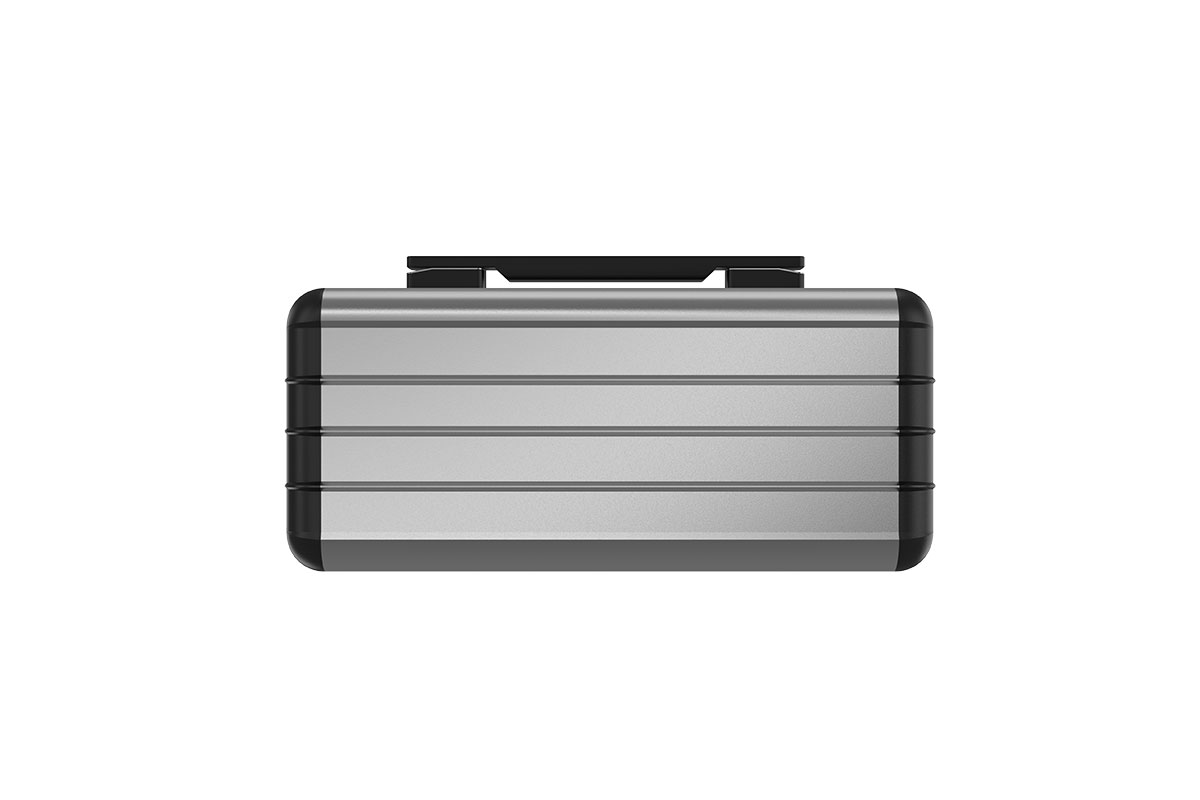

Better heat dissipation

Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

Bright LED Lamp

Golden Future Portable power station has a 10W LED lamp with four brightness levels and an emergency signal mode. One time fully charged can power the built-in lamp for up to a week.

10W

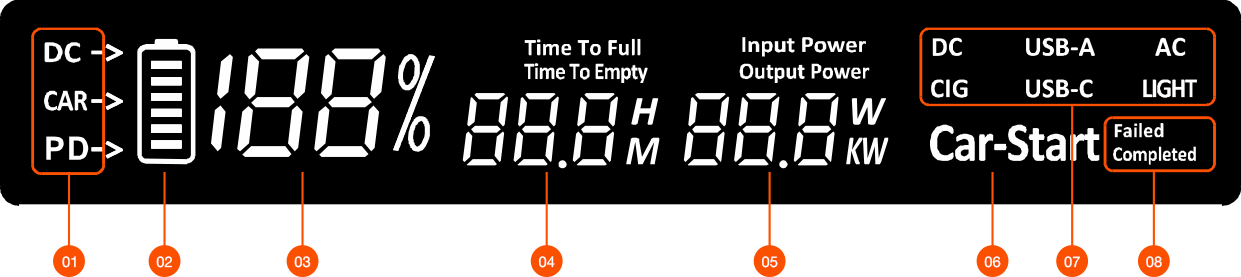

PANEL ICONS

  • 1

    Charging instructions

    DC for charging with adapter or PV, CAR for car charger port charging, PD for USB-C charging.

  • 2

    Power icon

    Battery level according to 6 cells, charging runner indicates charge level

  • 3

    Power indicator

    Displays the charge level of the battery as a percentage.

  • 4

    Time Remaining Indicator

    Indicates the estimated time to completely charge the battery (Time To Ful) or completely drain it (Time To Empty), in either hours (H) or minutes (M).

  • 5

    Total power indication & display switching AC frequency

    "Input Power" indicates charging power and "Output Power" indicates discharging power The lower number W or KW indicates the current power value, if you want to switch the AC frequency, hit the AC button 3 times in succession, the screen will display "F50" representing"50Hz";“F60“, representing"60Hz"

  • 6

    Car Recharge Mode

    "Car-Start , which indicates that the car battery is being charged, is suitable for topping up the car battery and for emergency starting of the car.

  • 7

    Interface status indication

    DC, CIG, USB-A, USB-C, AC, LIGHT are displayed to indicate that the corresponding function is switched on.

  • 8

    Car start status indication

    The three display combinations Car- Start /Car-Start Failed /Car-Start Completed on the far right side indicate that car start charging is in progress, start charging has failed, and start charging is complete.

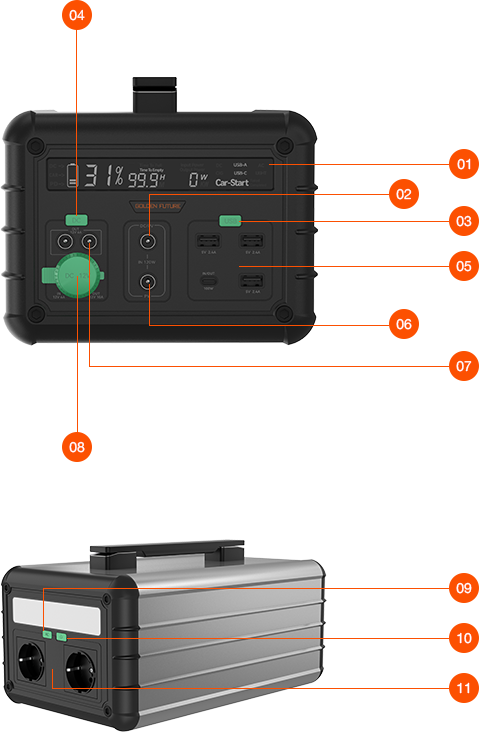

  • 1

    LED Display

  • 2

    DC Input

  • 3

    USB Button

  • 4

    DC Button

  • 5

    3*USB-A 1*USB-C

  • 6

    PV Input

  • 7

    2*DC 5521

  • 8

    Car Socket

  • 9

    AC Button

  • 10

    LED Button

  • 11

    2*AC
