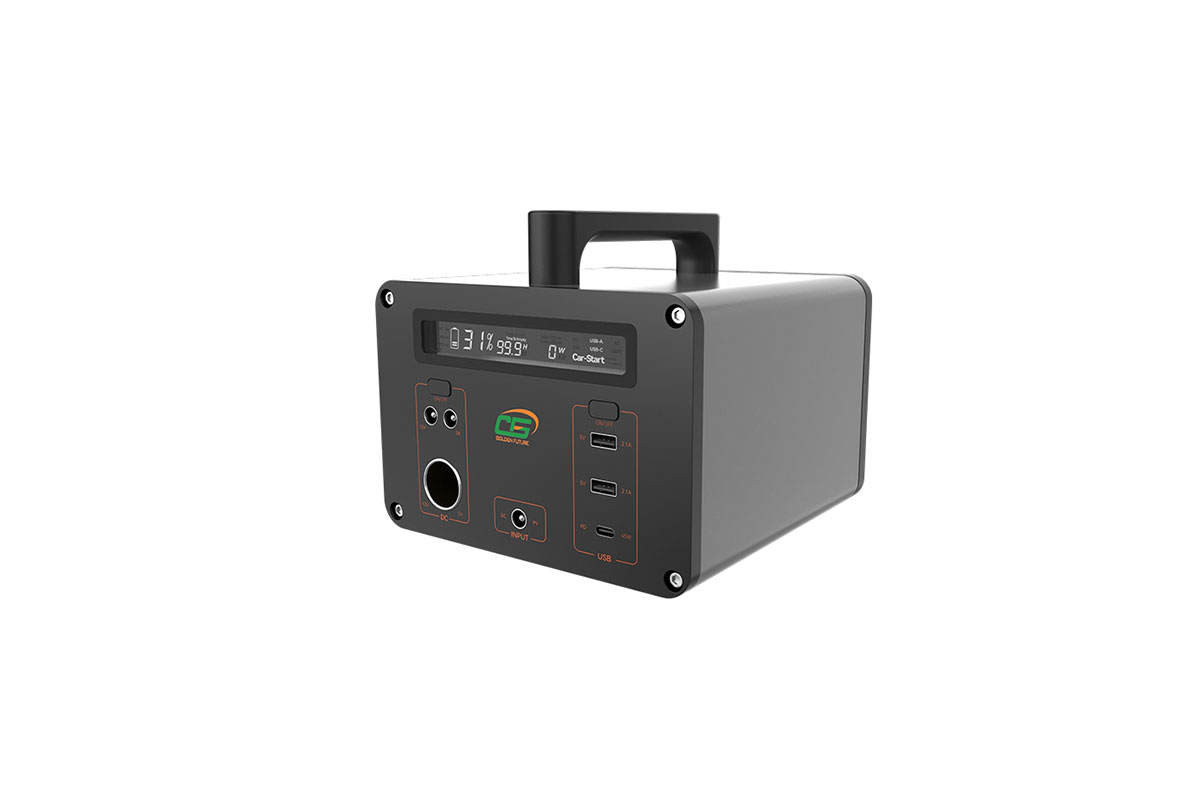

PB-MN500W

500W outdoor Potable AC power station supply

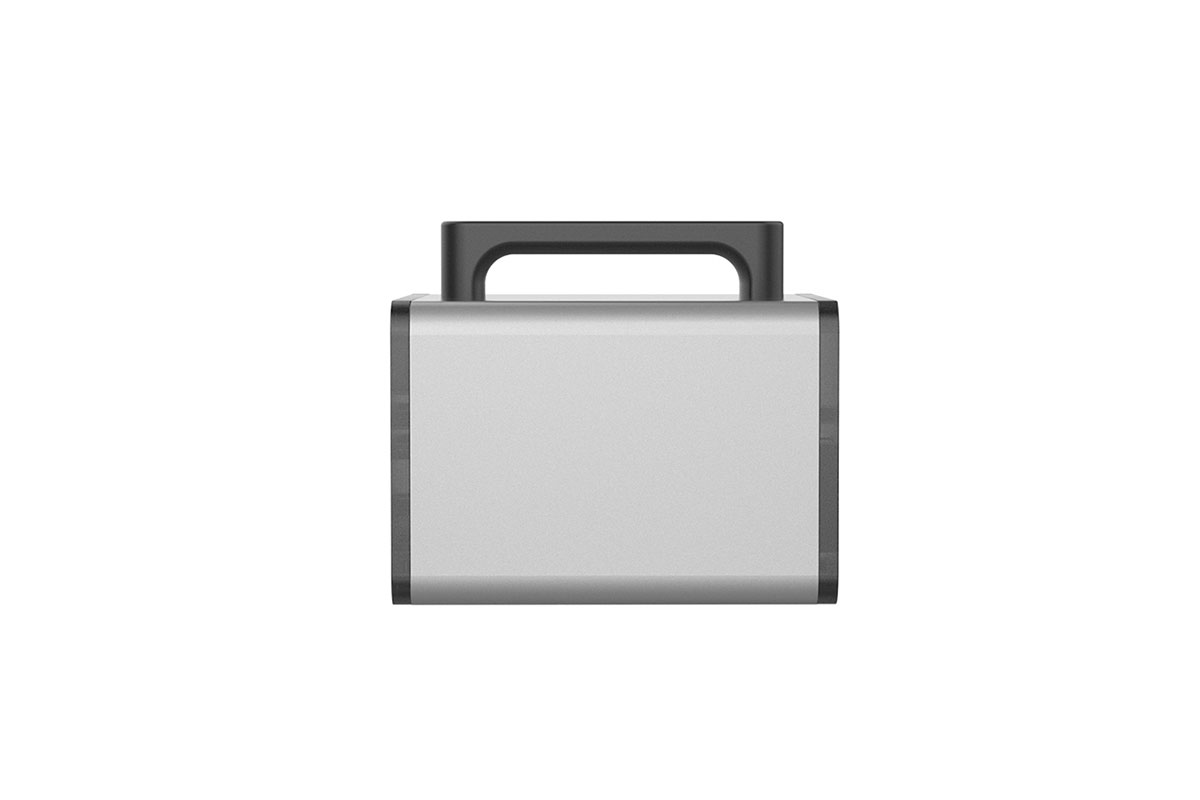

· Use aluminum alloy shell with good heat dissipation

· 4 Charging ways. (Solar panel, DC, Car socket and PD )

· 5 Output ways. ( DC / AC/ USB / PD and Car socket )

· over 2000 cycles automotive-grade LiFePo4 battery

· Support AC outlet and PD 60W simultaneously charging

Inquiry

Download

Product Details

Smaller Quieter Lighter

PRODUCT PARAMETERS

Backup power capacity 532.8Wh
Dimensions 194.8mmx210mmx180.9mm
Weight Approx. 5.4kg
IP rating IP20
Charge operating temperature 0~40℃(32~104°F)
Discharge operating temperature -10~45℃(14~113°F)
Storage temperature -20~45℃(-4~113°F)

Input

DC charging 20V=5A MAX 100W
PV charging 17.5 -24VDC MAX 120W(MPPT)
Type-C charging 5V/9V/12V/20V=3AMAX PD60W Supports the PD3.0 protocol
Charging with a car charger 12.6.15V MAX 100W

Output

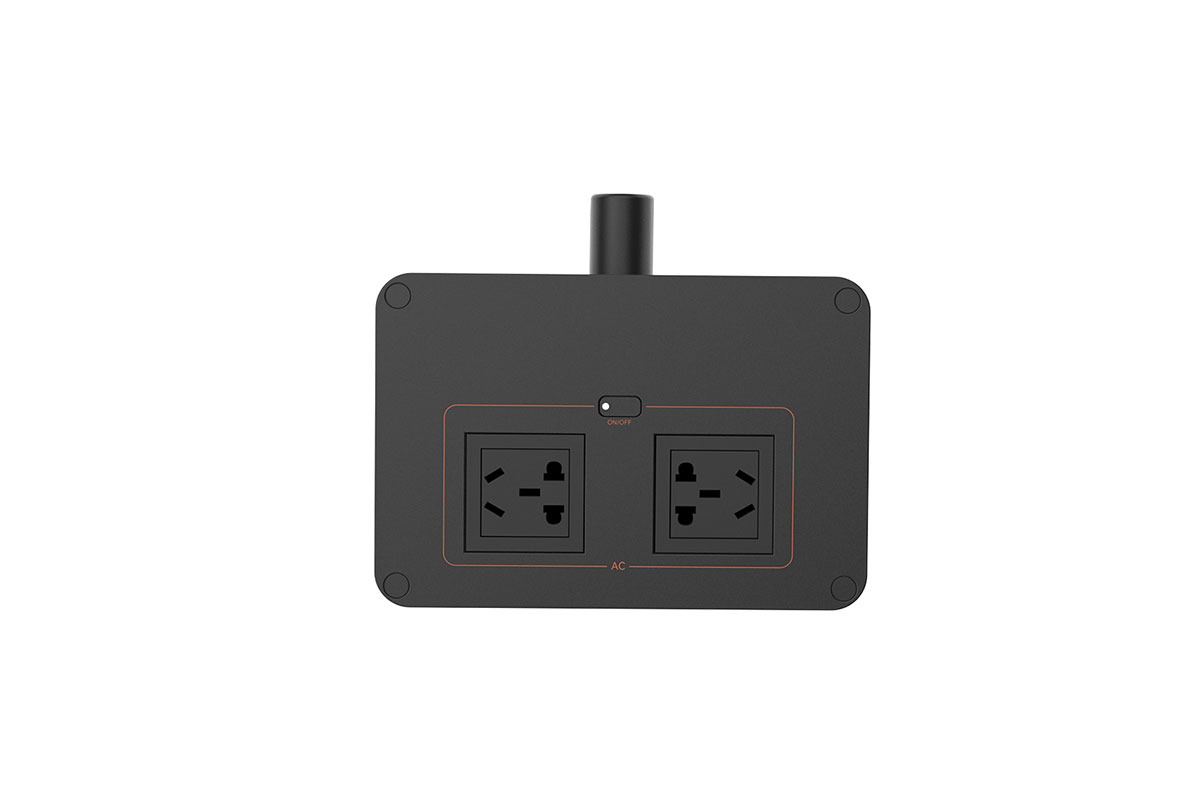

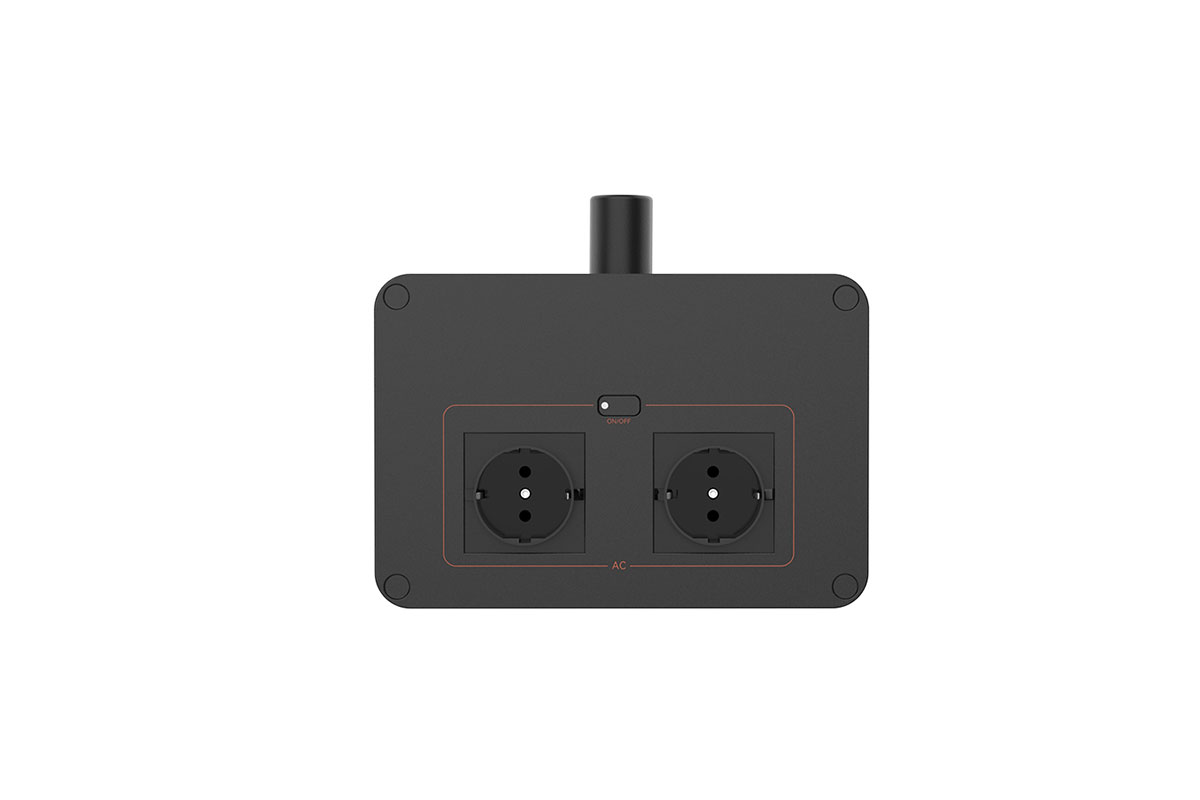

AC output Pure sine wave 300W, 220V/50Hz/60Hz
USB output USBx2, 5V==2.1A
Type-C output 5V/9V/12V/20V=3A MAX PD60W Supports the PD3.0 protocol.
DC output DC(5521 plug) x 2, 12.6V=5A
Car charger output 12.6V MAX 10A

PRODUCT ADVANTAGES

: Easy to carry

The size and weight of our portable power station is only about 65% of same wattage power station on the market, which is much easy to carry.

: Better heat dissipation

Our portable power station adopt the aluminum housing, which with better heat dissipation, and no need fans for heat dissipation, which allows you to sleep well at night without being disturbed by the fan noise.

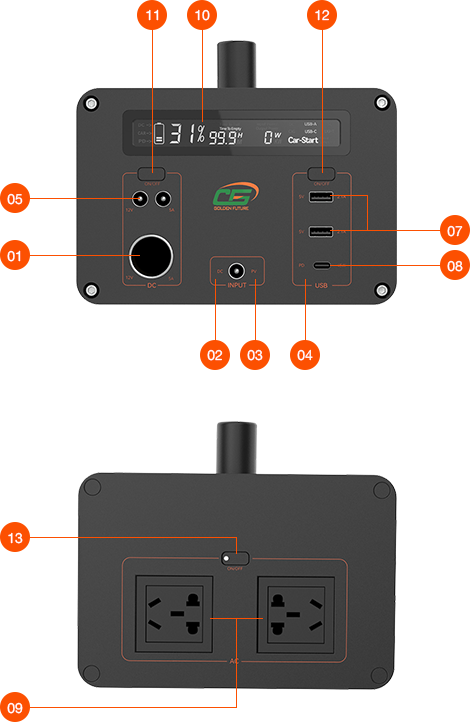

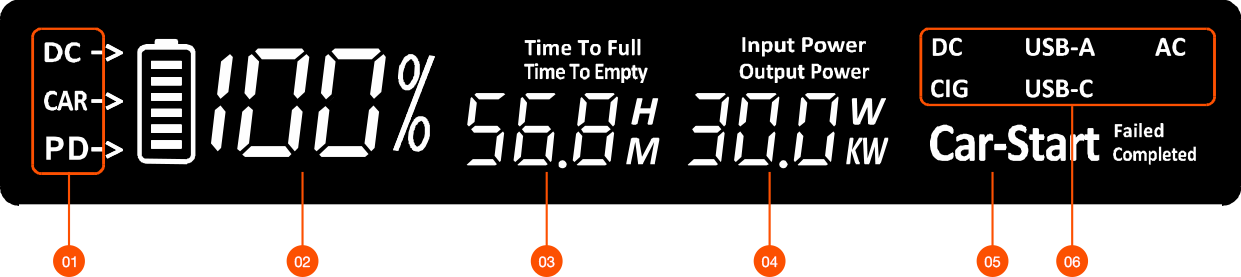

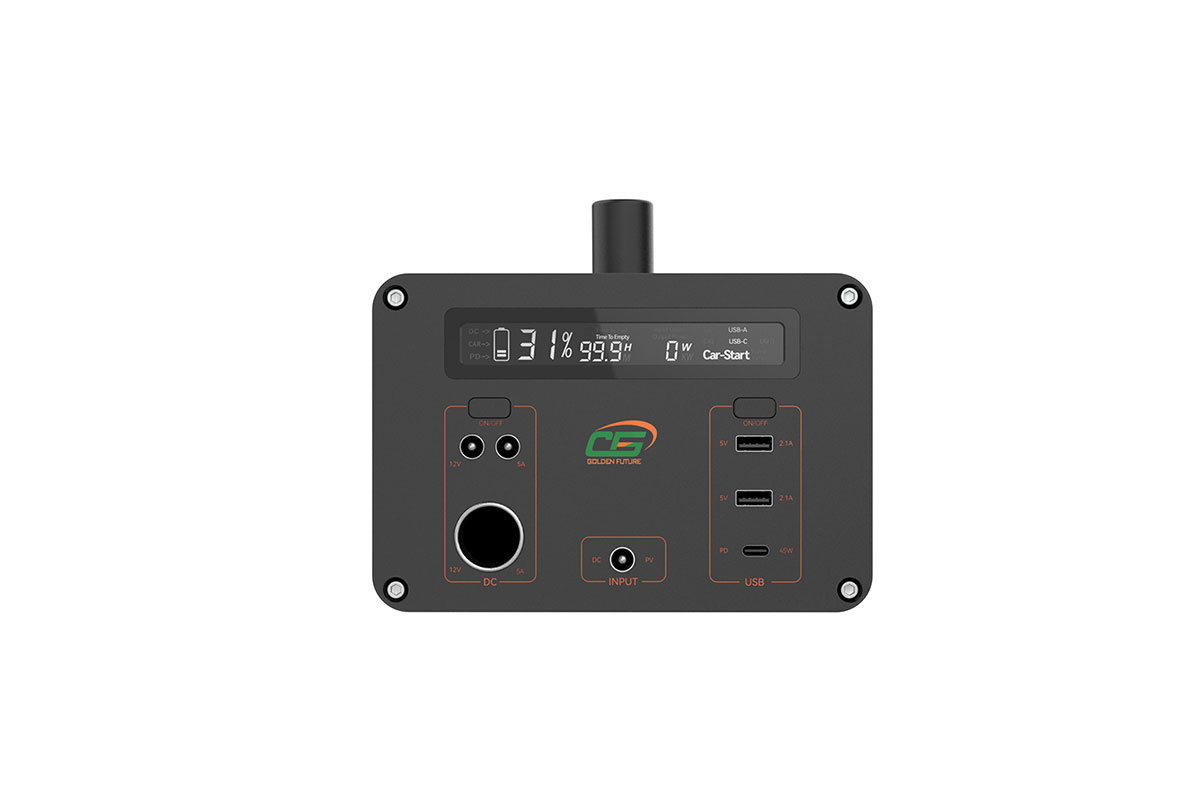

PANEL ICONS

1: Charging instructions

DC indicates charging with an adapter or a solar panel, CAR indicates charging with a car charging port, PD indicates charging with Type-C.

2: Power indicator

State of charge(SOC) percentage.

3: Time Remaining Indicator

Time To Full indicates the remaining time to a ful charge. Time To Empty indicates the remaining time to a complete discharge.

4: Total power indication & display switching AC frequency

Input Power indicates the input power. Output Power indicates the output power.

5: Car Recharge Mode

Car- Start indicates that the car battery is being charged. Ca-Stat Failed indicates that battery charging has failed. Car-Start Com pleted indicates that battery charging is completed.

6: Interface status indication

DC indicates DC output, CIG indicates car charging output, USB-A indicates USB-A output, USB-C indicates Type-C output, and AC in dicates 220V AC output.
